Roll-Up Door Prop

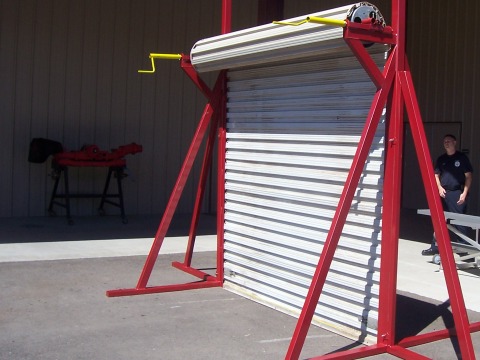

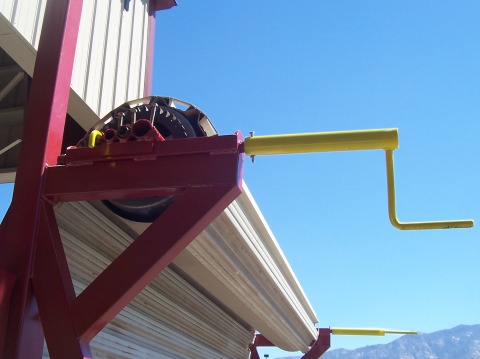

Since our last post had some discussion about cutting the roll-up door it seemed appropriate to follow up with this. Engineer Jim Hanel with the Golder Ranch Fire District sent in photos of a roll-up door training prop. The prop was built by Jeremy Rinder, a steel worker/artist from their area. A lot of thought went into the design: It can accommodate any size door since the two sides are totally independent and even works with different sized center rods and roll size. The large yellow handles adjust the distance between the center rod hole and the roll down channel. The small yellow handle (seen in the second picture) secures the roll from rotating once it is all set. As mentioned above, although it’s hard to tell from the pictures, the roll-up slides down a channel just like on an actual installation. The channel prevents the roll up from bouncing while making the cuts, giving it a realistic feel. The nice thing about this prop is once all of the cuts are made and there is no useable door left, simply roll down some fresh door, secure it, and go! The prop can be broken down into 4 pieces for storage or transport and can be fixed to the ground by spikes when necessary.
